BYT laser engraving machine

Other Machines

ISO,CE

EPA4

Farm Tractor

4WD

Gas/Diesel

0 /0

L/C,T/T

Quantity:

Send Enquiry
Product Details

BYT laser engraving machine

BJG 960-1290官网--首图.jpg


Technical data


Model

BJG-1610T

BJG-1810T

Machine size(mm)

2200*1720*1170

2400*1720*1170

Laser power

80w

80w

Working area(mm)

1600*1000

1800*1000

Voltage

220v/50hz

Cooling way

circulation water cooling or choose water chiller

Cutting speed

0-36000(mm/min)

Engraving speed

0-64000(mm/min)

Resolution

≤4000dpi

Working temperature

0-45℃

Working humidity

5%-95% no-cemented water


Features



1. Adopt DSP digital chip control interface card, may compatible CorelDRAW, CAD direct output, support BMP, PLT, AI, DST, DXF file etc..

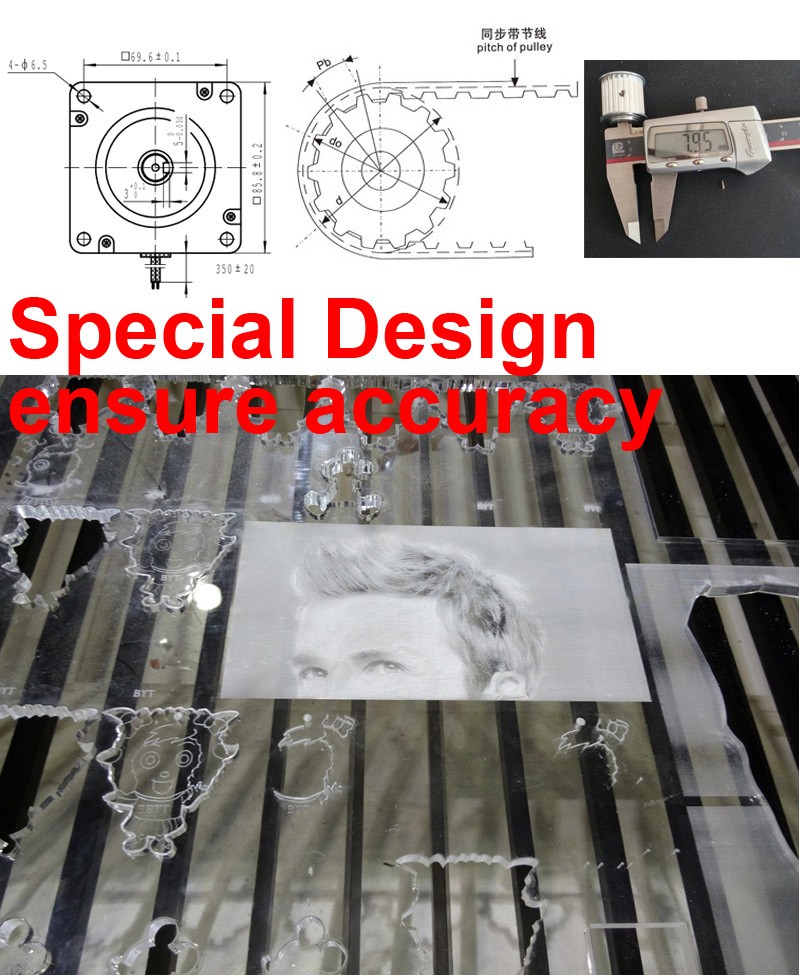

2. Adopt three imported linear guide rail, 3M synchronous belt and use America chip drive, match up big torque synchronous

motor, so that the cutting precision and curve more accurately smooth.



3. The stability of high efficiency laser power and big power, the little flare, high response of lasers, give full play to the potential of the machine.

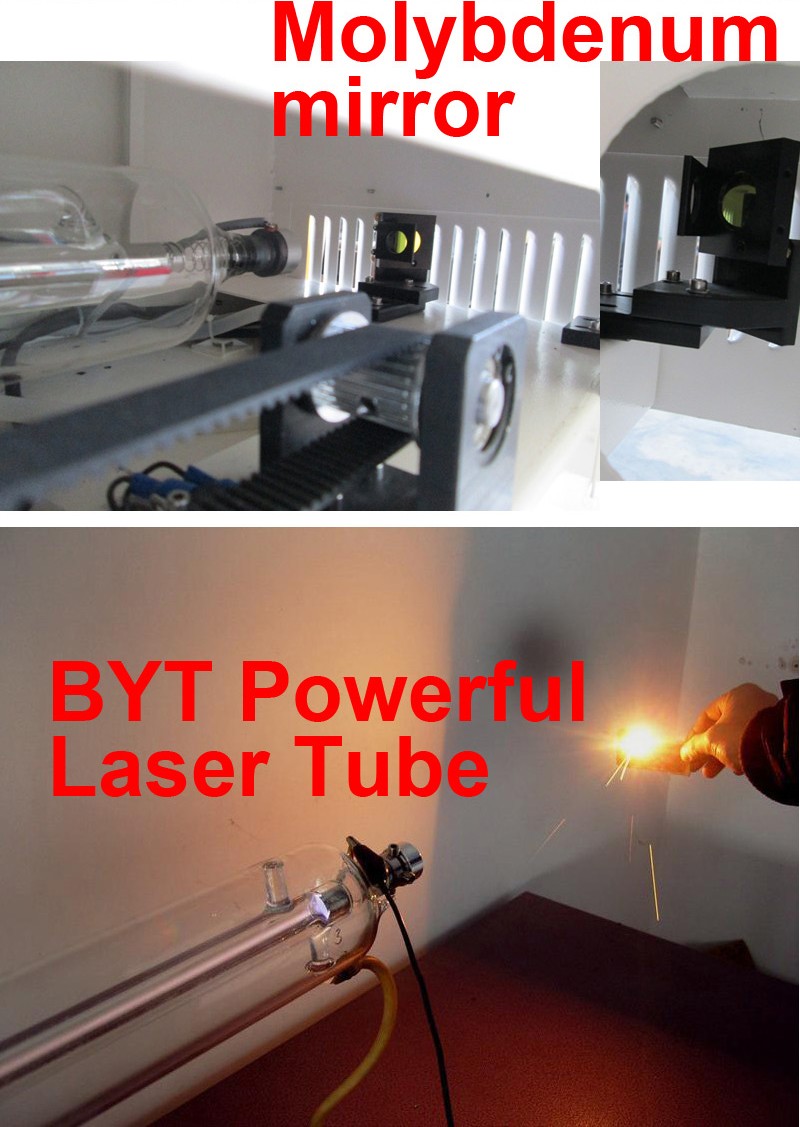

4. Flight light way system adopts the wear resistance of metal molybdenum mirrors and import focus lens, and greatly reduce

the operation cost of the machine.



5. Adopt slow down synchronization idle wheel, further improve the cutting precision and processing surface smoothness.

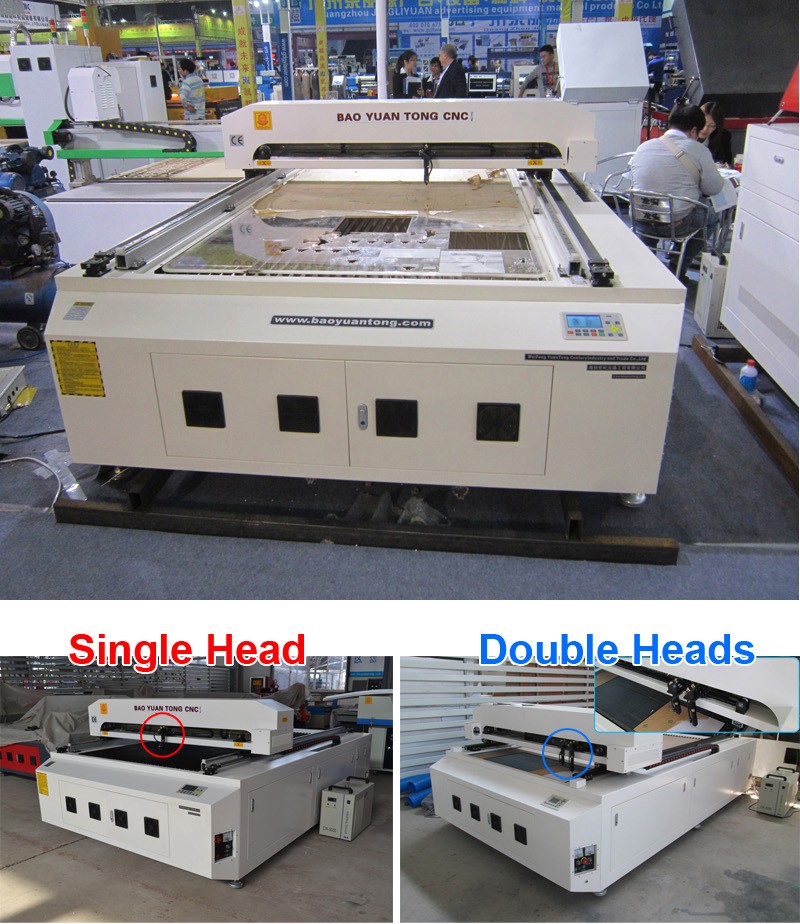

6.Two lasers working at the same time, particularly suitable for clothing, home textile, embroidery, furniture and leather etc,

which don't have strong requirements on processing area but pay attention to the efficiency of processing industry, make the

produce cost lower but the cutting results uniform.


Applicable materials:



The non-metal materials like wood, paper, leather, fabric, organic glass, epoxy resin, acrylic, wool, plastic, rubber, ceramic tile, crystal, jade, bamboo ware etc.



Applicable industries:



This type of machine is suitable for dress, leather, plush toys, computer embroidery cutting industry.




Guaranty:

1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.12 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery , operation disk was included.


FAQ:



1) This is the first time I use this kind of machine, is it easy to operate?

There are english manual or guide video that show how to use machine.

If there is still have any question, we can talk from phone or skype.



2) If machine has any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.



3) MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.


CE Certification



Our Factory and Customers


Welcome to our factory!

We have more than 20 kinds  CNC Router,

Please contact us,

So we can help you select the right system to meet your needs and fit your budget !
