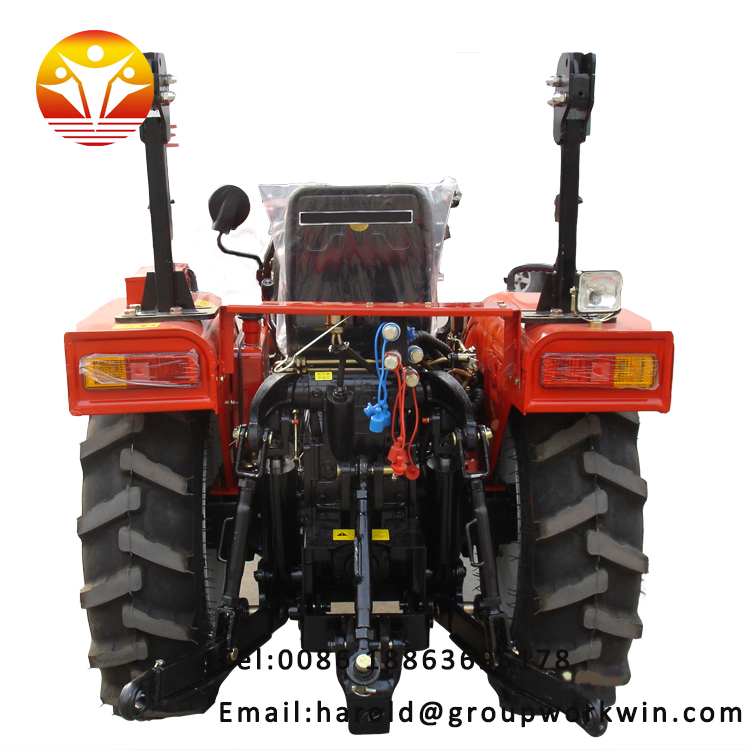

Three-point suspension, type II connecting rod, tilling depth adjustment mode, used for force adjustment, position adjustment, power bit integrated adjustment, fixed fixed chain rear lower rod suspension system, suspension rod with height adjustment function, lifting ability after suspension. Cooling water tank; increase oil cooler and radiator tank area for better function.

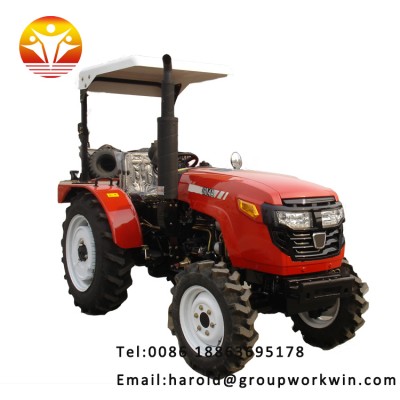

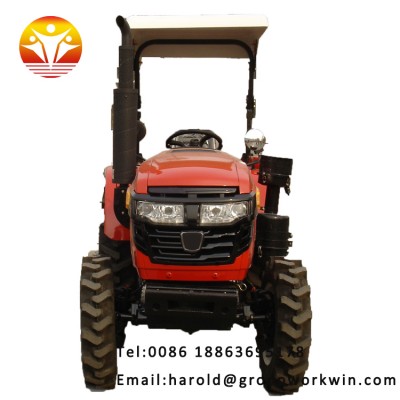

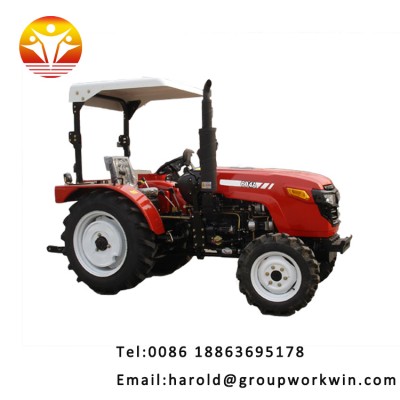

Technical Specification of 604 Series Tractor | |||
MODEL | 604 | ||
ENGINE | MODEL | YTR4105T93X | |
Rated speed(r/min) | 2350 | ||
Rated power(KW) | 44.1 | ||
Bore X Stroke(mm) | 80X100 | ||
Rated traction(KN) | 12.5 | ||
Dimensions of Tractor | Overall Dimensions LXWXH(mm) | 3750X1739X2494 | |
Wheel base(mm) | 2236 | ||
Tread (mm) | Front wheel | 1450 | |
Rear wheel | 1530 | ||
Min. Ground Clearence (mm) | 290 | ||
Constructional weight (Kg) Wihtout cab | 2795 | ||
Design speed (km/h) | Forward | 0.54~34.51 | |
Rear | 0.76~12.4 | ||
Transmission | Clutch | double stage clutch, ingle disc, dry-type | |
Gearbox | 12+12 Spindle type shift | ||
Central Drive | spiral bevel gear pair | ||
Differential | Closed, | ||
Transmission & Steering | Steering Type | The all hydraulic power steering | |
Wheel Tye | Front Wheel | 8.3-20 | |
Rear Wheel | 14.9-28 | ||
Power-take- off | Type | snmi-independence | |
Speed of P.T.O. (r/min) | 540 /760 or 540/1000 | ||
Max lifts capacity at the point of 610mm from suspending shaft backward (KN) | ≥11 | ||
hydraulic assembly type | snmi-sepatated |
Packaging Details
Steel frame in container
Port
Qingdao
SHAN XI WATER GROUP WORK WIN CO., LTD. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best agricultural equipments, garden equipments, and accessories.Our main product lines: tractor series, agricultural cultivating machinery series, spraying series, harvesting machinery series, post-processing machinery series,casting and forgings series. Our farm implements could match with domestic tractor (FOTON, YTO), and foreign famous brand tractor (JOHN DEERE, NEW HOLLAND, KUBOTA etc.) We have a multilingual team, and many big branch factories.
use
1. The use of a simple floor structure and an external divider is easy for maintenance;
2. The safety frame is optional;
3. The single-acting or double-acting clutch is optional;
4. The various gear configurations, such as 8+2, 8+8, and 16+4 are optional, and the velocity distribution is reasonable to meet different operating needs;
5. The synchronized shuttle shift is optional, and the operation is easy, flexible and reliable;
6. The operations of hydraulic steering, the mandrel cylinder front drive axle are easy and flexible.
7. The front and rear narrow treads, stepless and adjustable rear tread and the minimum tread of 960mm can better meet the operational
FAQ
Q1: How about your company?
A1: We are a leading manufacturer and provider of total integrated supply chain solutions for agricultural machinery.
Q2: What is the MOQ?
A2: Normally the MOQ is one set. There are some exceptions to this requirement because of the type of machines.
Q3: What is the delivery time?
A3: 25-35 working days after payment.
Q4: What about the package?
A4: Iron frame, in bulk or customized.
Q5: Can I put my brand name on your agricultural machines instead of your brand name?
A5: Yes. We could do OEM/OBM.
